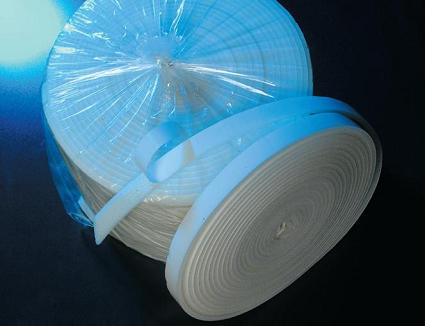

About Our Shutter strip Self-adhesive Polyurethane shuttter sealing foam strip

Shutter strip is used as a sealing strip for the prevention of grout loss through but joints in metal or wooden formwork. It is made of a polyurethane foam with a adhesive backing strip.

Shutter strip Self-adhesive Polyurethane shuttter sealing foam strip

DIRECTIONS FOR USE

  • Ensure that the sides of the shutter panels are free of dirt, base grit, dust or grease     oil.
  • Apply Shutter strip to the side of the panel by peeling off the release paper and
        sticking the self-adhesive side to the panel.
  • Place the next shutter panel in position firmly against the Shutter strip to ensure
        that the foam is compressed.

    • The correct size to be used depends on the condition of the formwork or type being used:

    JOINT FORMER PRODUCT CODES AND SIZES

    Product
    Foam
    Width
    Thickness
    Code
    Colour
    (mm)
    (mm)
    GS5x20
    Grey
    5
    20
    GS10x20
    Grey
    10
    20
    GS15x20
    Grey
    15
    20
    WS5x20
    White
    5
    20
    WS10x20
    White
    10
    20
    WS15x20
    White
    15
    20

    Shutterstrip Self-adhesive Polyurethane shuttter sealing foam strip

    ADVANTAGES
  • Self-adhesive backing makes our foam seal easy and clean to use.
  • Supplied in various widths and thicknesses.
  • Water based acrylic adhesive makes Shutterstrip easy to remove after use.
    •
    PHYSICAL PROPERTIES / TECHNICAL DATA
    Composition:  Self-adhesive, open cell Polyurethane foam.
    Colours:  Grey or White.
    Density Grey:  22 - 24 kg/m3.
    Density White:  5mm width = 23 kg/m3 &
       10 & 15mm width = 20 kg/m3.
    Roll size:  10 meters.

    Also have a look at our Joint former Web Page?
