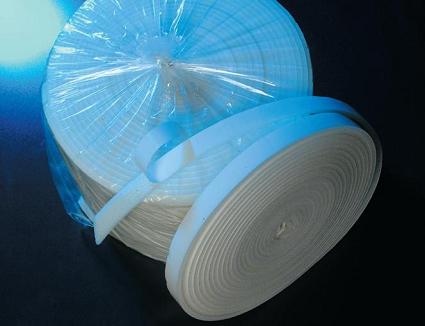

About Our Groutex®/Groutseal® Self-adhesive Polyurethane shuttter sealing foam strip

Groutex®/Groutseal® is used for prevention of grout loss through but joints in metal or wooden formwork.

Groutex<sup>®</sup>/Groutseal<sup>®</sup> Self-adhesive Polyurethane shuttter sealing foam strip

DIRECTIONS FOR USE

  • Ensure that the sides of the shutter panels are free of dirt, base grit, dust or grease oil.
  • Apply Groutex® to the side of the panel by peeling off the release paper and sticking
        the self-adhesive side to the panel.
  • Place the next shutter panel in position firmly against the Groutex® strip to ensure that
        the foam is compressed.
  • The correct size to be used depends on the condition of the formwork or type being used:

    JOINTEX® PRODUCT CODES AND SIZES

    Product
    Foam
    Width
    Thickness
    Code
    Colour
    (mm)
    (mm)
    GS5x20
    Grey
    5
    20
    GS10x20
    Grey
    10
    20
    GS15x20
    Grey
    15
    20
    WS5x20
    White
    5
    20
    WS10x20
    White
    10
    20
    WS15x20
    White
    15
    20

    Groutex<sup>®</sup>/Groutseal<sup>®</sup> Self-adhesive Polyurethane shuttter sealing foam strip

    ADVANTAGES
  • Self-adhesive backing makes our foam seal easy and clean to use.
  • Supplied in various widths and thicknesses.
  • Water based acrylic adhesive makes Groutex® easy to remove after use.

  • PHYSICAL PROPERTIES / TECHNICAL DATA
    Composition:  Self-adhesive, open cell Polyurethane foam.
    Colours:  Grey or White.
    Density Grey:  22 - 24 kg/m3.
    Density White:  5mm width = 23 kg/m3 &
       10 & 15mm width = 20 kg/m3.
    Roll size:  10 meters.
