About Our Lifting Eyes or Eye Bolts

Lifting Eye or Eye Bolt Specifications

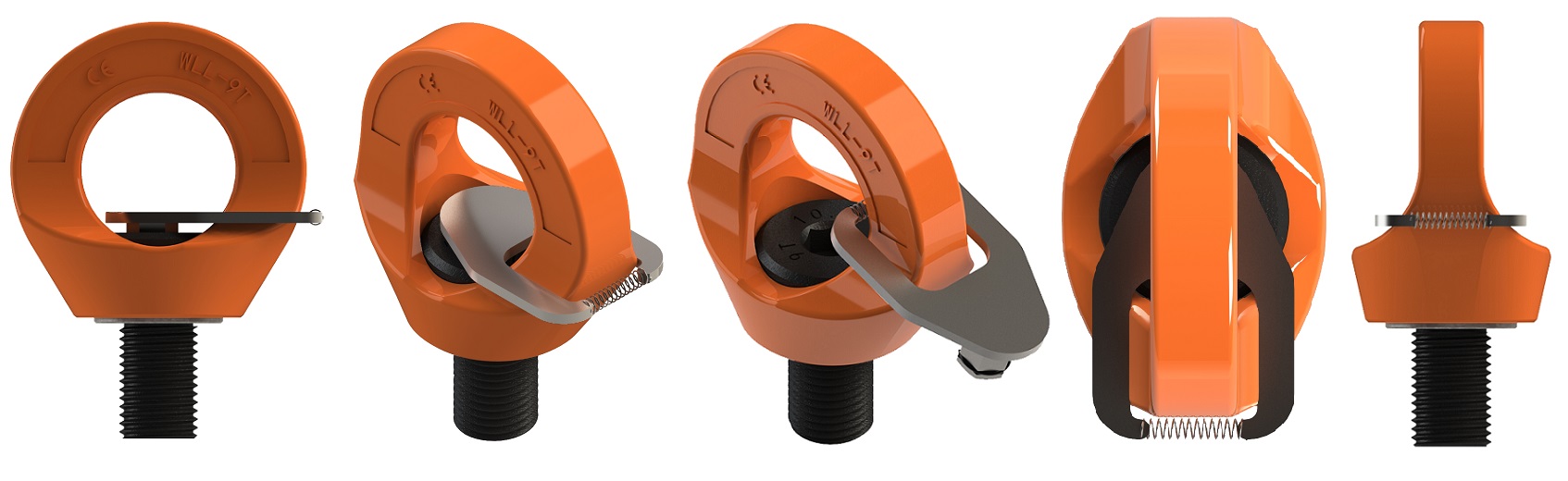

jpg/lifting eyes or eye bolts.jpg












PRECISION FORGING - HIGHER TENSILE STRENGTH

  • Eye bolt made with precision forging, from a special alloy steel.
  • High precision performance is achied with a special heat treatment process.
  • The force angle of the link ring is automatically adjusted when it is pulled in a direction.
  • The working tensile strength is the same in any direction. The safety factor is 4:1.
  • The surface is coated with an expoxy resin, which effectively prevents corrosion.
  • Allen Key and hex nut which allows the eye bolt to be tightened properly.
  • A wide range of swivel eye bolts are available - M8 to M48, 0.3 to 12.0 Tons Working lifting load.
  • Metric threaded eye bolts are kept in stock, but UNC, UNF, BSW, etc. threads can be made available on request.
  • Suitable for deep and through holes.

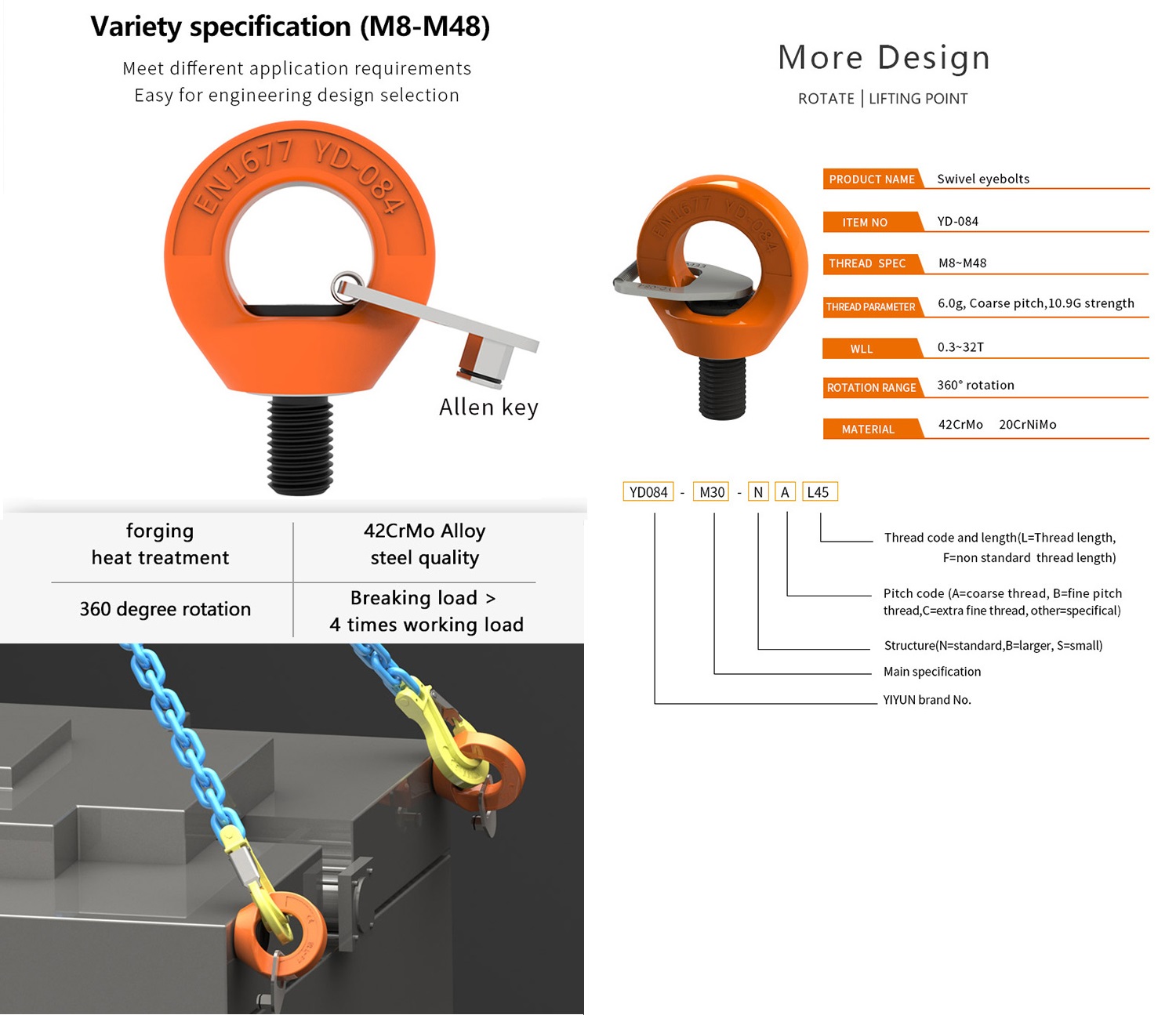

jpg/eye bolt or lifting eye.jpg



Eye Bolt or Lifting Eye Dimension Tables

jpg/eye bolt or lifting eye dimension table.jpg   jpg/eye bolts or lifting eyes dimension table.jpg

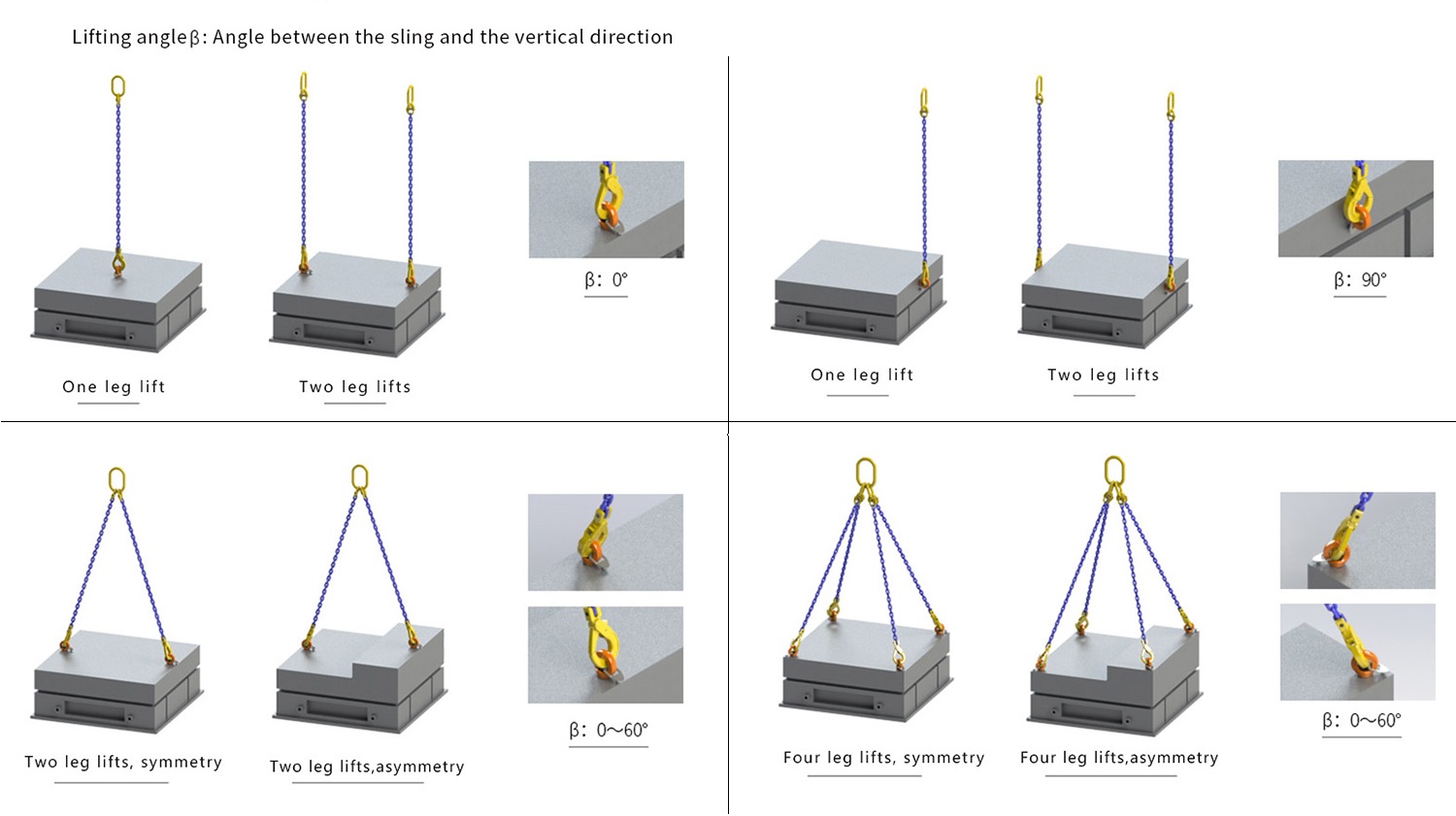

Eye Bolts or Lifting Eyes Lifting Scheme

jpg/eye bolts or lifting eyes lifting scheme.jpg

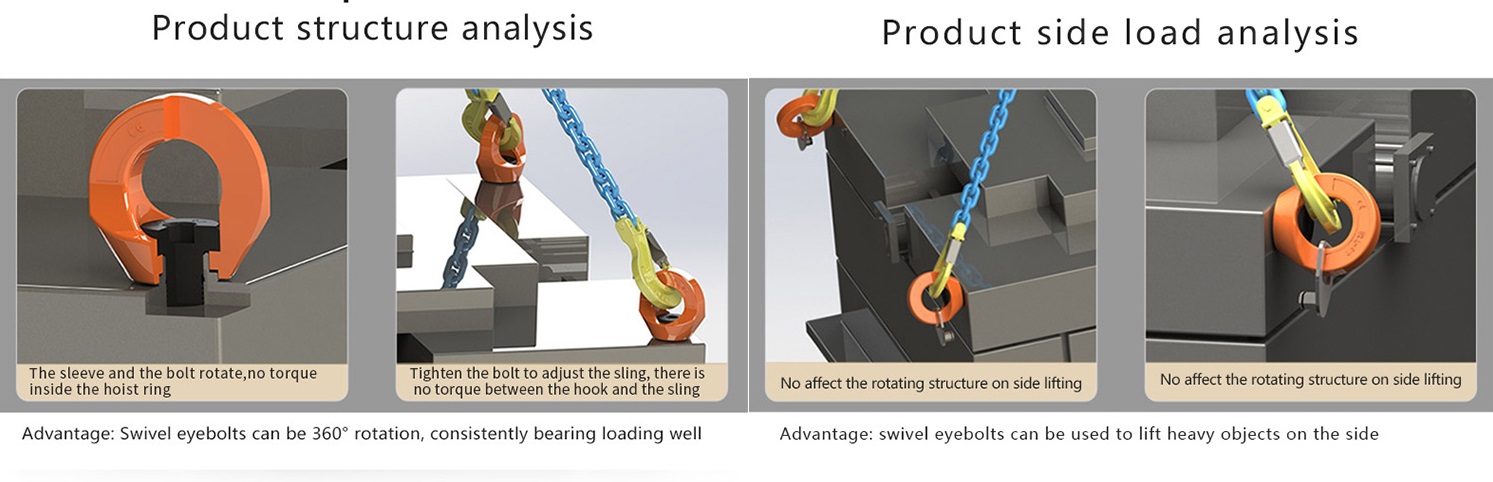

Eye Bolts or Lifting Eyes Product Parameters

jpg/eye bolts or lifting eyes product parameters.jpg
